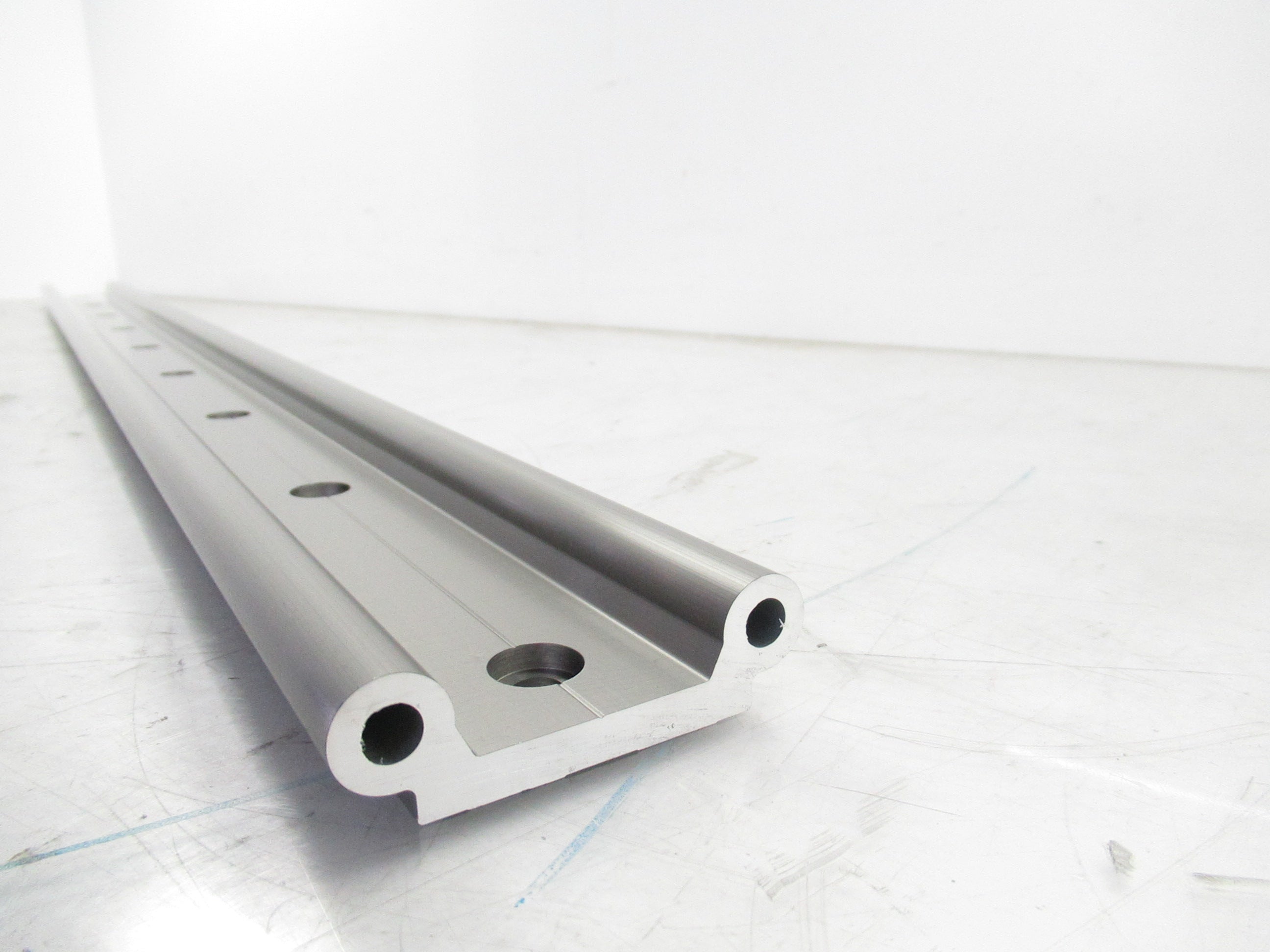

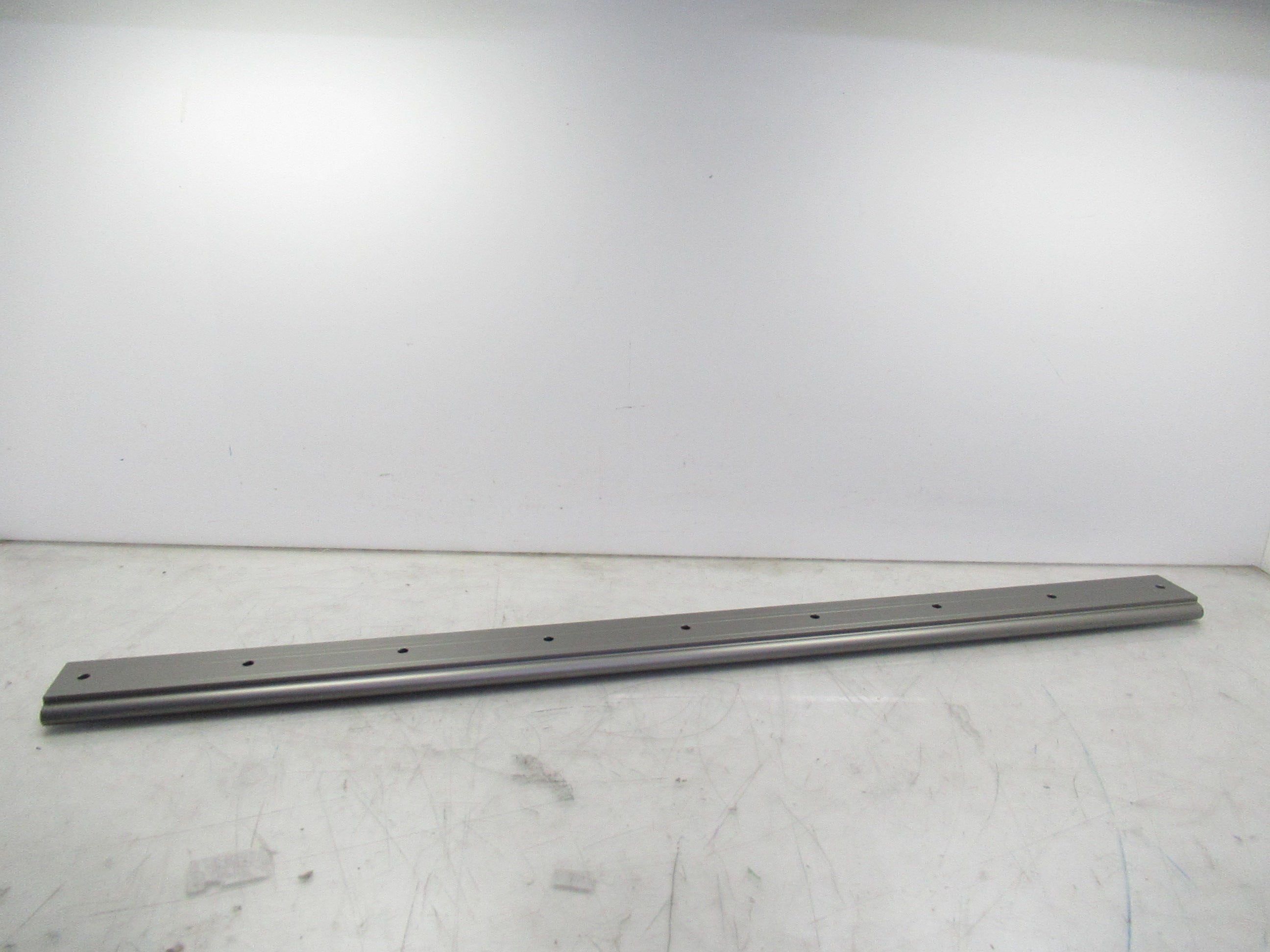

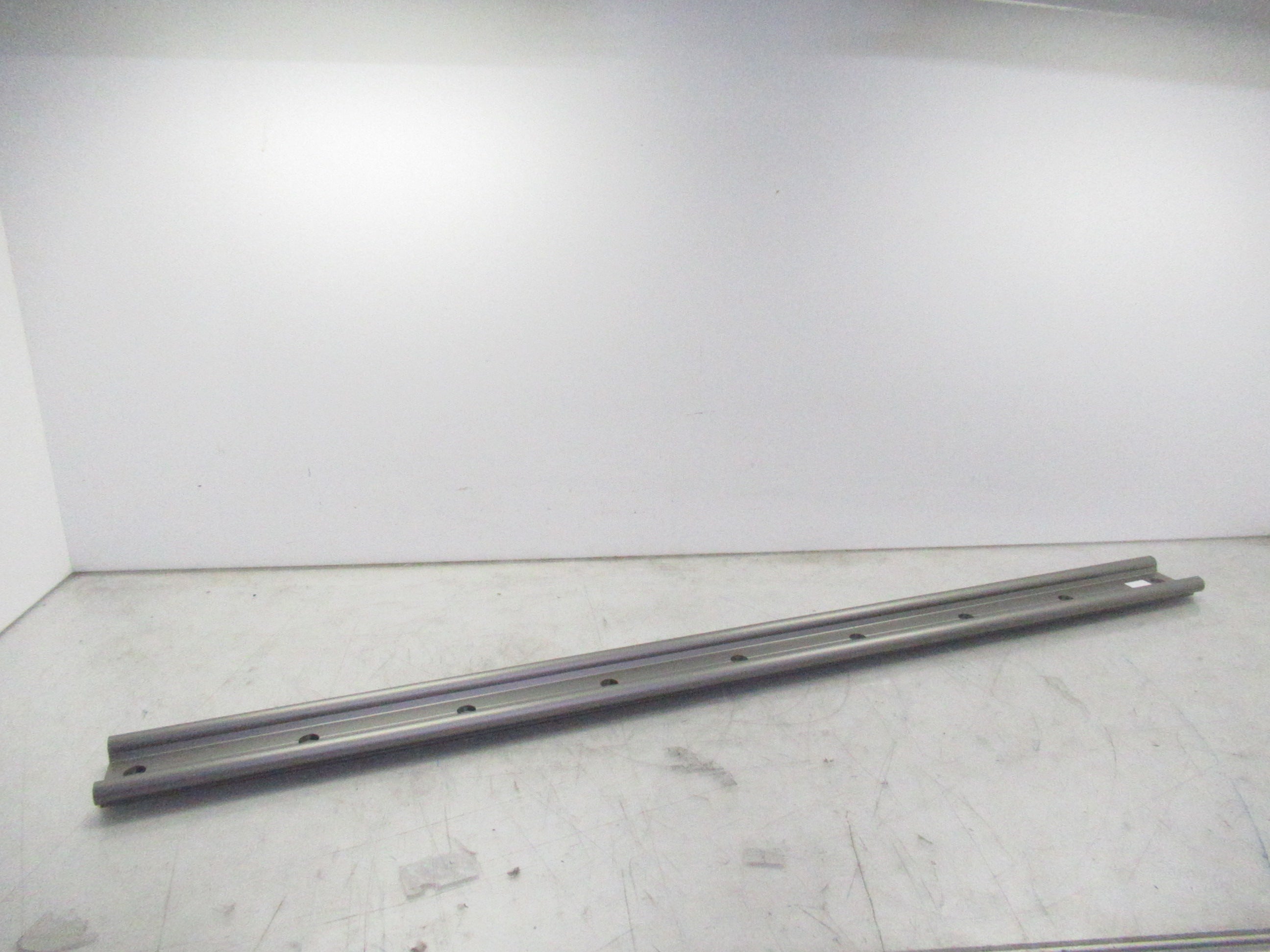

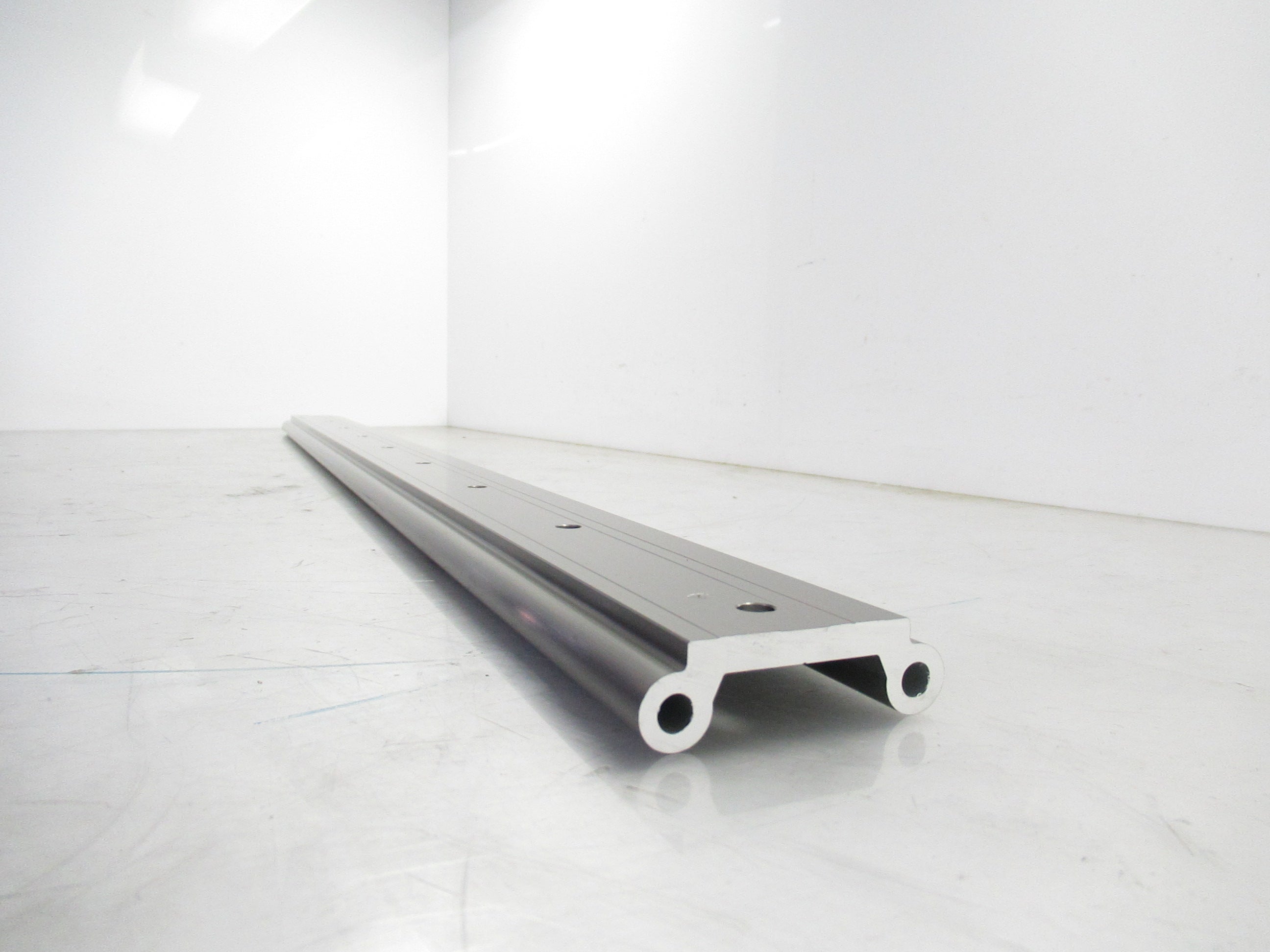

Priority access Igus WS-16-60-1000 Drylin W Double Rail WS

H

27.0 mm

da

16.0 mm

Inner diameter di

8.0 mm

a

54.0 mm

b

58.0 mm

h

7.5 mm

h1

3.50 mm

h2

14.00 mm

G1

43.0 mm

G2

29.0 mm

A1

25.0 mm

Q1

32.0 mm

Q2

28.0 mm

C4

120 mm

C5/C6 (min.)

20.0 mm

C5/C6 (max.)

79.5 mm

K1 for screw DIN 912

M8

H-Tolerance

±0.25 mm

da-Tolerance

-0.1 mm

a-Tolerance

-0.5 mm

Installation size

16-60

Rail profile

Round

Design

Double Rail

Material

Aluminum, hard anodized

Holes

bores arranged in one row

Iy

367,600 mm⁴

Iz

26,100 mm⁴

Wby

9,900 mm³

Wbz

1,900 mm³
